Design Gallery
This gallery walks through layout, cable, alarm, and energy choices teams can reuse when refreshing infusion and monitoring fleets.

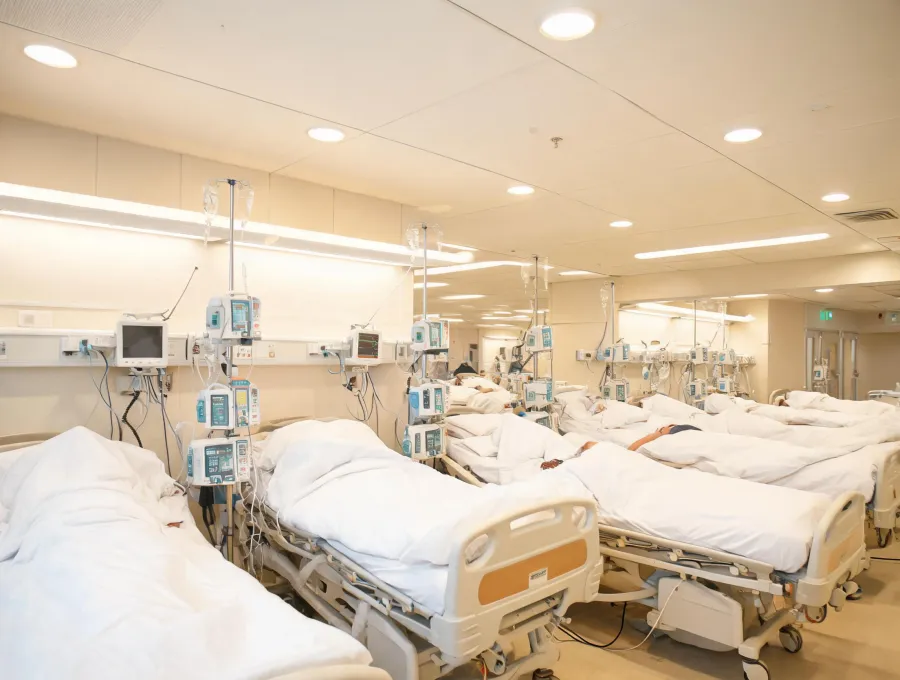

A 220-bed community hospital (Midwest US, role-anonymized case) started with 240 aging monitors and a mixed pump fleet that forced nurses to invent local workarounds. After a care-setting design workshop with Icu Medical in 2024, the team replaced 180 endpoints, standardized secondary-set hooks, and added remote energy telemetry on idle devices.
“Good design is not decoration—it is how a night-shift nurse finds the right pump channel without fighting cables.”
— Director of Facilities & Clinical Engineering, 220-bed community hospital (role anonymized)
The same telemetry now shows which devices draw idle power outside scheduled clinical use, so the next capital refresh is sized from measured utilization rather than anecdote. SpO2 sensor families and IEC 60601-1-8 alarm tones were remapped before go-live so night-shift acknowledgement paths matched ICU policy.
Design constraints
Boom geometry, tidal-volume capable life-support accessories, and monitor density must be revalidated per acuity zone. Cloning ICU density into med-surg rooms raises false-alarm load.
WEEE take-back and UDI deregistration cover end-of-life. They do not replace biocompatibility, sterility assurance level (SAL), or reprocessing validation when reusable circuits remain in scope.
HL7 FHIR observation maps still need identity matching, downtime retries, and MDS² / SBOM review under your ISO 13485 / QSR change-control process.

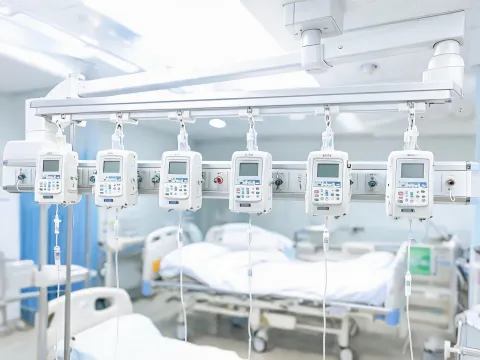

Multi-channel pumps, telemetry transmitters, and SpO2 sensor leads top the list. Gallery pattern: vertical boom + labeled channel cards + 30 cm service loop standard.
Map ICU, step-down, and med-surg separately. Avoid cloning ICU layouts into lower-acuity rooms; use portable carts with docked charging for overflow.
Yes. Take-back programs issue recycling certificates and UDI deregistration receipts when serials are captured at decommission.
Energy and utilization metrics are not PHI when patient identifiers are excluded. Cover any residual clinical context with a standard BAA.
Bring floor plans, fleet serials, and alarm policy notes—we will return a care-setting layout brief your facilities and biomed teams can stress-test.
